| Dimensions | 5.1" H x 2.1" W x 5.1" L (129 mm H x 52 mm W x 130 mm L) |
| Weight (kg) | 4.6 oz. (131 g) including battery |
| Cable Length (m) | 1.83 m |
| Colour | Light Grey |
| Ambient Light Immunity | Sunlight: Up to 9,000ft-candles/96,890 lux |
| Battery Type | Rechargeable Lithium-ion Battery |
| Connectivity Options | Bluetooth |
| Focal Point | Approximately 100 mm |
| Internal Memory Capacity | 1 MB NOR Flash, 16 MB RAM |
| Operating Humidity Range | 5% to 95% (non-condensing) |
| Operating Temperature | -20°C - 55°C |
| Pitch | ± 65° (from front to back) |
| Power Source | Rechargeable Battery |
| Decode Capabilities - 1D | BC412, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN |
| Rotational Tolerance | ±180° |
| Sensor | CMOS 1.2 megapixel; (1280 x 960) greyscale |
| Skew | ± 60° from a plane parallel to a symbol (side-to-side) |
| Storage Temperature | -20°C - 50°C |
| Target Beam | Single blue targeting bar |
| Optical Resolution | High Density Field: 960 x 640, Wide Field: 960 x 640 |
| Image Output Options | JPEG, PGM |
| Decode Capability - 1D Stacked | Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 |
| Decode Capability - 2D | Aztec Code, Data Matrix, Data Matrix Rectangular Ext'n, GoCode®, Grid Matrix, HanXin Code, Micro QR Code, QR Code, QR Model 1 |
| Decode Capability - Postal | Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-Net, UK Royal Mail, UPU ID-tags |
| Field Selection | High Density or Wide Field |
| Advanced-Data Editing | JavaScript |
| Symbol Contrast | 15% minimum reflectance difference |
| Charging Station Communication Interfaces for Barcode Scanners | USB 2.0 (generic HID, HID keyboard, virtual com port) |
| Reader/Scanner Unit Communication | Bluetooth 5 Low Energy (class II) |

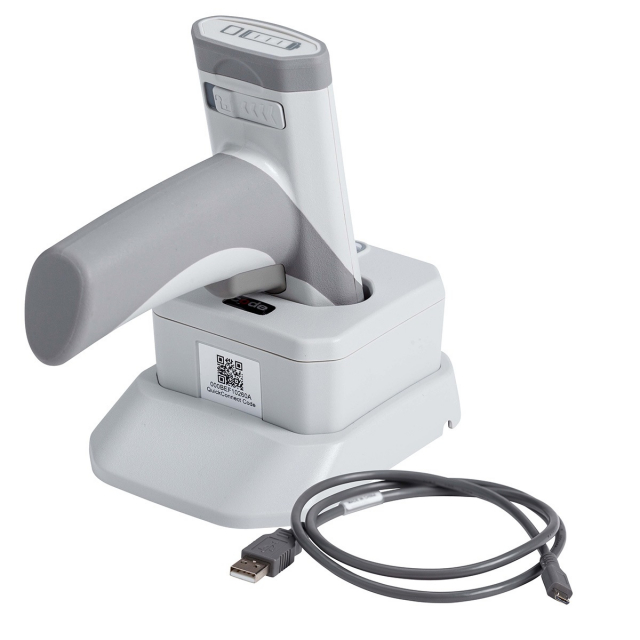

| Scanner Model | CR2700 |
| Number of Scans | Up to 50,000 scans per charge |
| Data Parsing | Driver's licences and ID Cards (optional licence required), GS1, HIBC |
| Data Structure Validation | HIBC UDI, ISO 15418, ISO 15434 |
| Wireless / Wired | Wireless |
| 1D / 2D Barcode Capability | 2D |
| Portability | Portable |
| Power Requirements | Reader at 5V DC; Charging Station: 5W Max; Quad-Bay Charger: 6W Max |
| Drop Test | Resistant to 1.8-metre drops |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| REACH SVHC Status | The part does not contain an SVHC |
| REACH Candidate List Date | 17 January 2023 |
| Approval/Compliance | CE, Europe: CE-RoHS |
| Ingress Protection Rating | IP65 |
