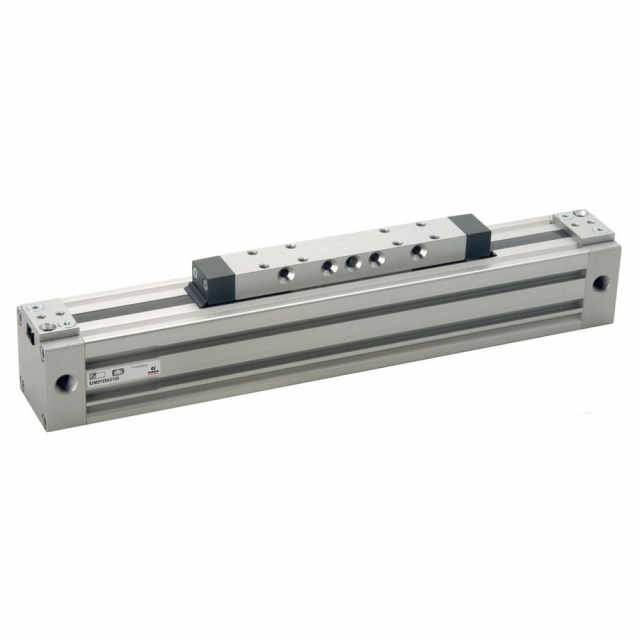

Camozzi, 52M2P50A4877, Series 52 Magnetic Standard 50 mm Bore 4877 mm Stroke Rodless Cylinder

Features:

• Cylinders with standard carriage
• Extra short carriage
• Possibility of feeding both chambers from one side only
• A permanent magnet is assembled on the piston allowing the position to be detected using proximity switches positioned in grooves on 3 sides of the cylinder profile.
• The cylinder is equipped with end stroke cushioning which can be regulated using a screw located on each end cover of the cylinder.

The cylinder has two supply ports "I" for both endcovers. The operator needs to choose which one of the two ports to use on each endcover. The remaining port has to be closed with the supplied tap.

For more information, please see Data Sheet
