Buy Camozzi 50M2P63A2900, Series 50 Rodless Cylinder, 2900mm Stroke

info@primebuyb2b.com

1-855-797-1969
1-908-282-3433 (Intl.)

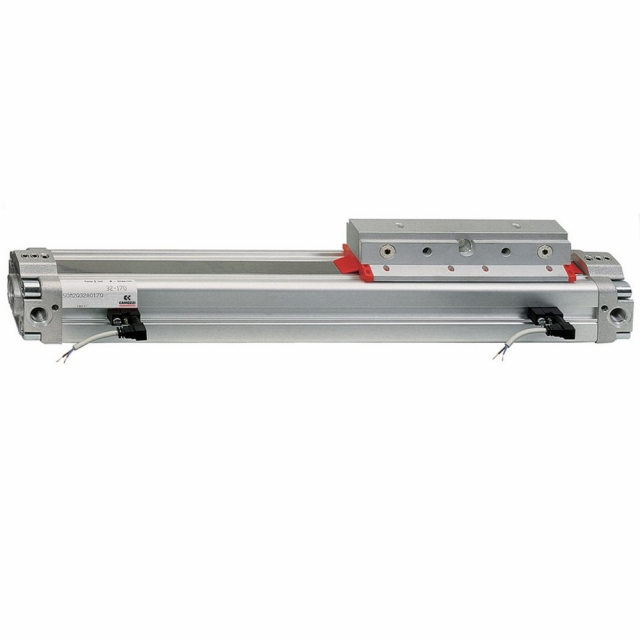

Pictures shown are for illustrative purpose only. Actual product may vary

Camozzi, 50M2P63A2900, Series 50 Magnetic 63 mm Bore 2900 mm Stroke Rodless Cylinder

Features:

Four ports on each chamber
It should be used according to the load values and torque forces detailed in the relative tables.

This series of cylinders is normally supplied with end-stroke cushioning, that can be regulated using a screw located on the end-cover.

The Series 50 cylinders are recommended to be used according to the load values and torque forces detailed in the relative tables.

For more information, please see pdf file Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type of Construction	Rodless with the integral carriage
Operation	Double-acting
Materials	End-covers, piston, and barrel = AL seals = PU and NBR
Operating Temperature	0°C - 50°C(with dry air - 10°C)
Operating Pressure	1 - 8 bar
Speed	10 - 1000 mm/sec (without load)
Fluid	Clean air, without lubrication If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Stroke Tolerance	0 / +3 mm
Type of Mounting	Foot mounted
Version	Standard magnetic
Bore Size	63mm
Type of Mounting	Standard
Stroke Size	2900mm

We offer volume discounts for large orders.

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

We also offer special prices for our regular customers.

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

We offer competitive prices on loads of products from leading manufacturers.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Type of Construction	Rodless with the integral carriage
Operation	Double-acting
Materials	End-covers, piston, and barrel = AL seals = PU and NBR
Operating Temperature	0°C - 50°C(with dry air - 10°C)
Operating Pressure	1 - 8 bar
Speed	10 - 1000 mm/sec (without load)
Fluid	Clean air, without lubrication If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Stroke Tolerance	0 / +3 mm
Type of Mounting	Foot mounted
Version	Standard magnetic
Bore Size	63mm
Type of Mounting	Standard
Stroke Size	2900mm

Note: Please read description carefully. Do not base your order on the picture presented.
