Buy Camozzi 41M2P160A0700, Series 41 Cylinder, 700mm Stroke

info@primebuyb2b.com

1-855-797-1969
1-908-282-3433 (Intl.)

Pictures shown are for illustrative purpose only. Actual product may vary

Options and Related Products

Stroke Size (mm):: Stroke Size (mm): 700

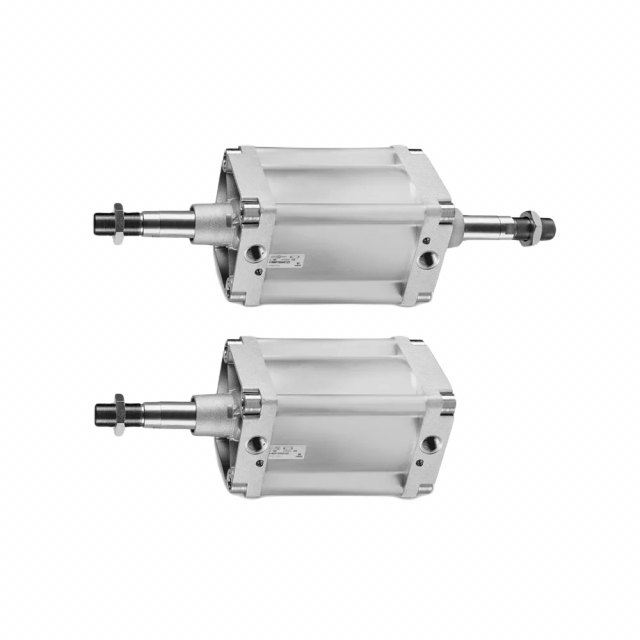

Camozzi, 41M2P160A0700, Series 41 Double Acting Cushioned Magnetic Cylinder, 160mm Bore, 700mm Stroke

Feature:

Double-acting, front and rear cushions
Standard design
In compliance with ISO 15552 standards and with the previous DIN/ISO 6431 - VDMA 24562 standards
Adjustable pneumatic cushioning
Rolled stainless steel rod
Rod scraper in brass
ATEX

Series 41K cylinder comply with the ISO 15552 standard and can be assembled with the entire range of standard accessories.

The mounting brackets used on the endblocks tube are designed in an extremely secure way, making use of cylinder tierods positioned internally and not visible on the assembled cylinder. This cylinder series is normally equipped with adjustable endstroke cushioning by means of a screw positioned on the end-block.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Type of Construction

Profile (with tie-rods)

Operation

Double-acting

Design

ISO 15552

Materials

AL end blocks and piston
Rolled AISI 420B stainless steel piston rod
Zinc-plated steel piston rod nut
Anodized AL-profile tube
Zinc-plated steel tie-rods and tie-rod nuts
NBR-PU rod / piston / cushion seals / brass rod scraper

Mounting

With tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination

Strokes

Min - max 10 - 2500 mm

Operating Temperature

0°C - 80°C (with dry air -20°C)

Operating Pressure

1 - 10 bar

Speed

10 - 500 mm/sec

Fluid

Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
