6057A Includes Only:
- 1x VBV-7104HFM-M - Monitor
- 1x VBV-7XXHFM-CA - Cable Adapter
- 1x VBV-7104FM-SS - Sunshield
- 1x BMM-023 - U Bracket
- 1x VBV-7104HFM-IG - Installation Guide
Features:
- AHD and CVBS compatible with automatic signal detection (see list of all supported TV systems)
- High-definition, high contrast, wide viewing angle digital LCD with LED backlight.

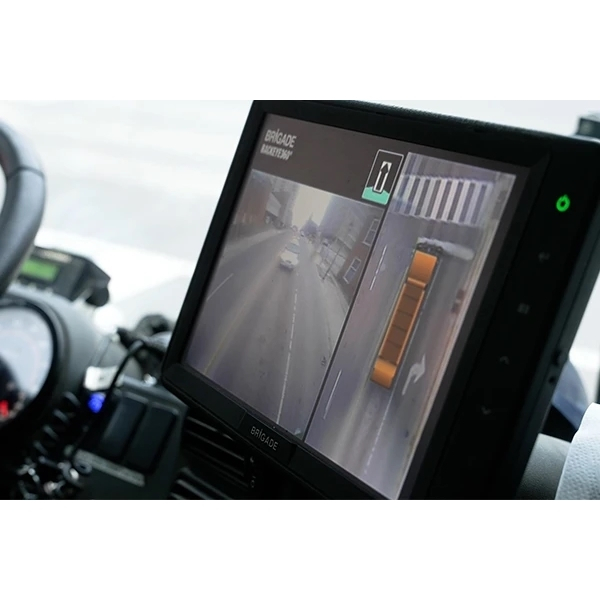

- Quad view monitor with multiple views.
- Configurable view options with double / triple / quad / 360 / ‘H' & Picture In Picture support.
- Configurable split option for additional camera usage with Backeye 360 systems.
- Scalable and Moveable Picture In Picture options.
- Configurable trigger input functions.
- Low Reflection TFT LCD (Anti Glare).
- Integrated ambient light sensor for image dimming.
- Illuminated touch keypad.
- Keypad disable/lock Via OSD Menu.
- Integrated large speaker.
- 4 x M5x6 VESA standard (75x75mm) mounting.
- 10 x On Screen Display (OSD) languages: (English, French, German, Spanish, Turkish Italian, Dutch, Portuguese, Russian, Polish)
- Configurable trigger off delay (0-20 sec.)
- Configurable Auto Scan delay (0-20 sec.).
- 2 x variations of electronic on screen markers.
- Compatible with Remote Control VBV-7X0FM-RC.
Approved Standards:
- E-Mark - (UNECE Reg. 10 Rev. 06)
- CE - (EN 61000-6-2:2019, EN 61000-6-3:2021 + A1:2011 + AC:2012)
- UKCA - (EN 61000-6-2:2019 / EN 61000-6-3:2021+A1:2011 + AC:2012)
- FCC - (47 CFR Part 15 Subpart B)
- Industry Canada - (ICES-003 Issue 7)
- Elements of ISO 16750
- Ingress Protection - (ISO 20653:2013)
Vehicle camera systems are a vast improvement on the many mirrors needed to view vehicle blind spots.
Mirrors themselves create further blind spots and ‘information overload' for drivers who don't know where to look first, with knocked or broken mirrors creating further visibility issues. Backeye® monitors allow multiple camera images to be viewed on a single monitor with dedicated views triggered by, for example, reverse gear. Cameras provide a wider angle of view than mirrors and are less likely to be damaged, while built-in LEDs offer superior visibility in low-light conditions.Vehicle CCTV systems are used in a wide range of on- and off-road applications to meet a host of health and safety and legislative requirements, including R46. They can eliminate blind spots to prevent costly vehicle damage and, more importantly, save lives.
Brigade Monitors
In-cab monitors are a vital part of the safety process, giving the driver essential information about the vehicle's surroundings.
Brigade's LCD monitors range from a compact 5" screen, suitable for smaller commercial vehicles or where cab space is limited, to 10.4" suitable for larger, heavy-duty machines or where permanent multiple images are required. Whether you need an entry-level reversing camera system or full vehicle CCTV, we can help. With single-to-multiple camera inputs and auto-triggers, Brigade monitors will work on any application in any industry, regardless of the number of camera views connected.
