Note: This is for the Chasis Only. This Does NOT Include a Blast Tube and Assembly Kit, a Flange and Gasket Kit, or a Nozzle. They are All Sold Separately and Need to Be Sized Based on the Appliance They Are Being Fired Into.

Features:

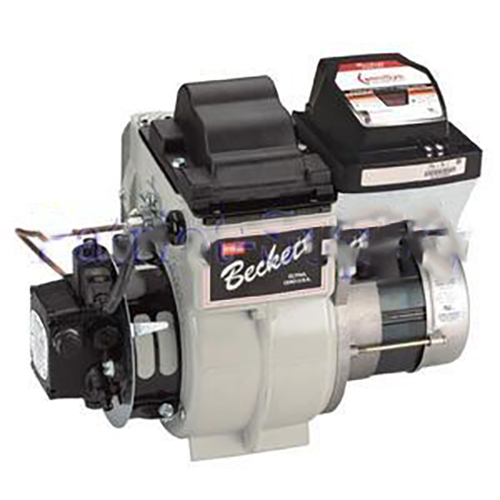

• Beckett AFG burner can be used for most oil-fired appliances, including positive pressure and poor chimney conditions.
• Flame-retention head keeps the flame locked to the head and provides a clean, compact flame.
• Uses state-of-the-art Beckett igniter with 20 kV peak output voltage for quick lights-off, even with cold oil.
• Air tube combinations feature second-stage air introduction to complete and optimize combustion and a unique design that allows the installer to make precise adjustments.

Firing ranges from 0.40 GPH to 3 GPH. Beckett PSC motor is 1/7 HP, 3450 RPM, 115VAC with NEMA 48M flange. Uses Beckett CleanCut pump with integrated solenoid valve for smooth, clean operation. Beckett Genisys 7505P152M primary control features interrupted duty ignition and pre and post-purge with alarm contacts.
