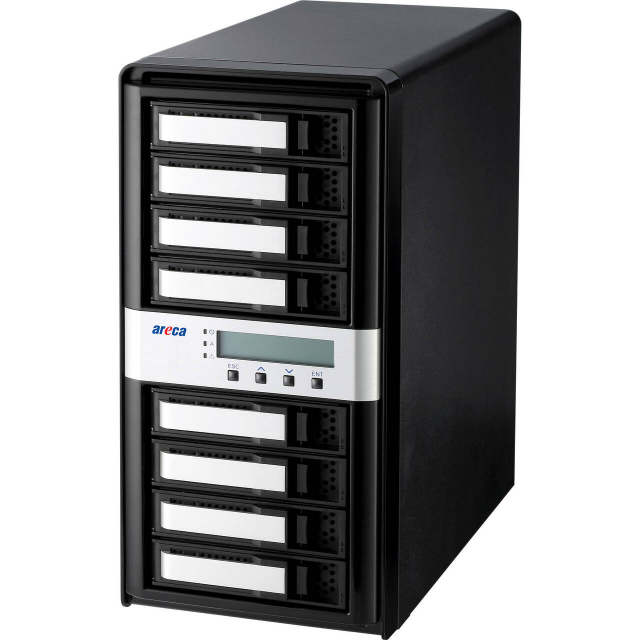

SAS-to-SAS JBOD box provides a compact external storage chassis capable of accommodating up to 8 12Gb/s, Serial-Attached SCSI (SAS) drives or 6Gb/s Serial ATA (SATA) drives. The box can support both 3.5-inch disk drives and 2.5-inch disk drives, each one contained in its individual hole on the disk carrier. The expander module is designed with an integrated ARM Cortex-R4 processor for topology management functions such as discovery, enclosure and drive management, and LED management. Each compact tower JBOD supports four 12Gb/s SFF-8644 and one 6Gb/s SFF-8088 SAS host and expansion connections. Out-of-band CLI can re-define manufacture default setting on those connections. Configuration and environmental information is accessible either via in-band (SES-3.0 over SMP) or out-of-band serial port.

Features:

• In-band SAS port
• Out-of-band RS232 serial port
• CLI through RS232 serial port
• Alarm Buzzer
• External SAS port LED Indicators
• Four 12Gb/s SFF-8644 and expansion connections
• One 6Gb/s SFF-8088 SAS host
• LED activity/status in each drive carrier
• Daisy chain capacity expansion for additional ARC-4038
• Plug & Play add capacity without shutting down
• Support CLI for configuration and environmental information
