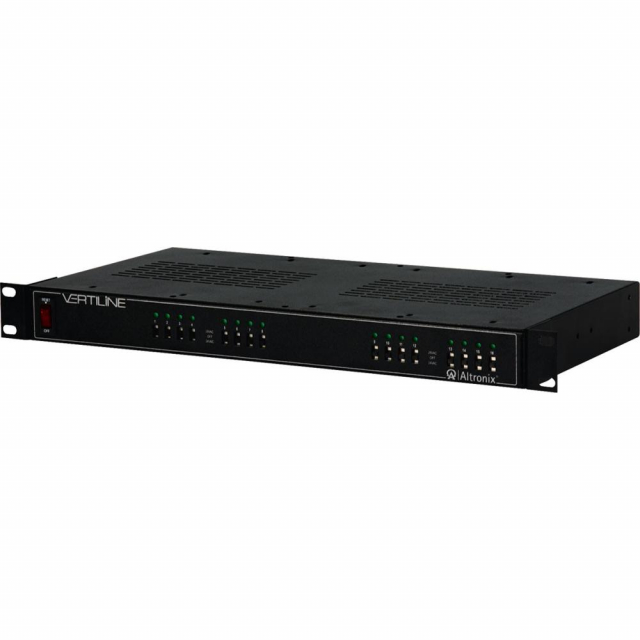

Vertiline16Di CCTV Isolated Rack Mount Power Supply provides 16 PTC protected power outputs in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. This unit features individually selectable 24VAC and/or 28VAC power outputs with surge suppression.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Input VoltageSelectable 115VAC 60 Hz or 230VAC 50/60 Hz input. 115VAC 60 Hz., 7A. 230VAC 50/60 Hz., 4A.
OutputSixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position. 24VAC or 28VAC at 16A max. total (1A per device, 2.5A max.). Individual electronically isolated outputs. Sixteen (16) PTC protected outputs rated at 2.5A. Surge suppression.
FeaturesEight (16) power LEDs. Illuminated master power disconnect circuit breaker with manual reset. IEC 320 - 3-wire grounded line cord (detachable). Removable terminal blocks with locking screw flange.
TemperatureOperating 0° C to 49° C (32° F to 120° F). Storage - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 24VAC: 197 BTU/Hr. 28VAC: 229 BTU/Hr. System AC input VA requirement: 115VAC: 805VA, 230VAC: 920VA.
Indicators (LED)Master Illuminated master power disconnect circuit breaker with manual reset. Output Sixteen (16) individual LEDs.
Dimensions (H x W x D)1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm).
Agency ListingsUL UL2044 (Commercial CCTV Equipment). cUL CSA Standard C22.2 No.1-04, Audio, Video and Similar Equipment. CE European Conformity. C-Tick compliant.

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Input VoltageSelectable 115VAC 60 Hz or 230VAC 50/60 Hz input. 115VAC 60 Hz., 7A. 230VAC 50/60 Hz., 4A.
OutputSixteen (16) individually selectable 24VAC or 28VAC power outputs with OFF position. 24VAC or 28VAC at 16A max. total (1A per device, 2.5A max.). Individual electronically isolated outputs. Sixteen (16) PTC protected outputs rated at 2.5A. Surge suppression.
FeaturesEight (16) power LEDs. Illuminated master power disconnect circuit breaker with manual reset. IEC 320 - 3-wire grounded line cord (detachable). Removable terminal blocks with locking screw flange.
TemperatureOperating 0° C to 49° C (32° F to 120° F). Storage - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 24VAC: 197 BTU/Hr. 28VAC: 229 BTU/Hr. System AC input VA requirement: 115VAC: 805VA, 230VAC: 920VA.
Indicators (LED)Master Illuminated master power disconnect circuit breaker with manual reset. Output Sixteen (16) individual LEDs.
Dimensions (H x W x D)1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm).
Agency ListingsUL UL2044 (Commercial CCTV Equipment). cUL CSA Standard C22.2 No.1-04, Audio, Video and Similar Equipment. CE European Conformity. C-Tick compliant.
