Features:

• 380 Lines of Resolution Has Built-In I/R Illuminators 2.5 Lux / 15-18Vdc 150Ma.

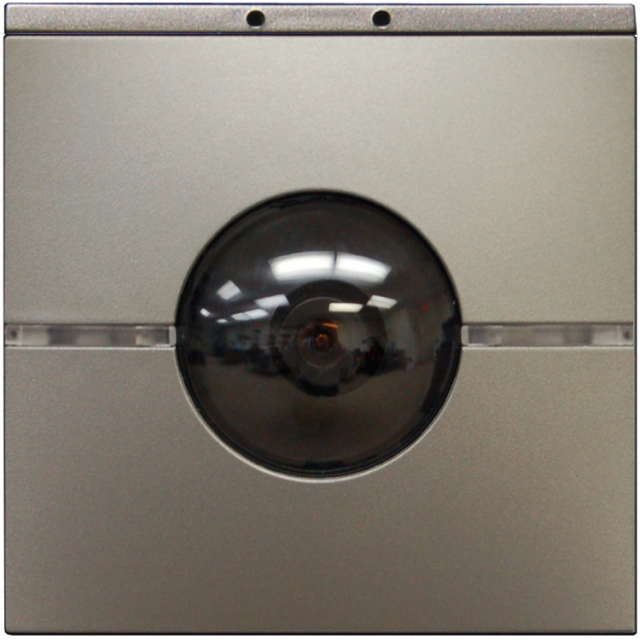

• The KM series camera modules are designed to be used with Alpha Communications® / S.T.R.™ modular series door entry stations.
• The KM series is a Black and White camera, and the KM-C series is a Color camera.
• All KM camera modules are 3.94"w x 3.94"h (100mm x 100mm), and are made to snap into the MT series modular panel trim frame(s).
• Recommended mounting height to center of camera lens is approx. 5 feet (1.55 meters) from finished floor.
• To service the KM series camera modules, once installed, use the model 13510 key / tool unit.

Both models feature a 3.6mm lens and 92 degree angle of view (side to side) and 700 lines of resolution. The KM features a luminous sensitivity of 0.8 Lux and the KM-C features a luminous sensitivity of 2.5 Lux. Both models also features built-in Infrared Illuminators. All versions operate on 15-18VDC (150mA) (as provided by power supply model # NGC20 or equivalent) and provide a video output of 1Vpp into 75 ohms.
