| Backlight Color | White |
| Display Resolution | 1280 x 800 px |
| Display Size | 12 inches |
| Screen Brightness | >1200 nits |
| Viewing Angles | 85° (top, bottom, left, and right) |
| Compass Safe | 50 cm (1.7 ft) |
| Dimensions W x H x D | 310 x 208 x 78mm (12.2 x 8.2 x 3.1") |
| Mounting Type | Bracket (supplied), panel mount or flush mount |
| Weight | 2.2 kg (4.9 lbs) |
| Power Consumption max | 29.7 W (2150 mA at 13.8 V) |
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12 V DC (10 - 17 V DC min - max) |
| Humidity | IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Operating Temperature Range | -15°C to 55°C (5°F to 131°F) |
| Shock Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Waterproofrating | IPx6 and IPx7 |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |

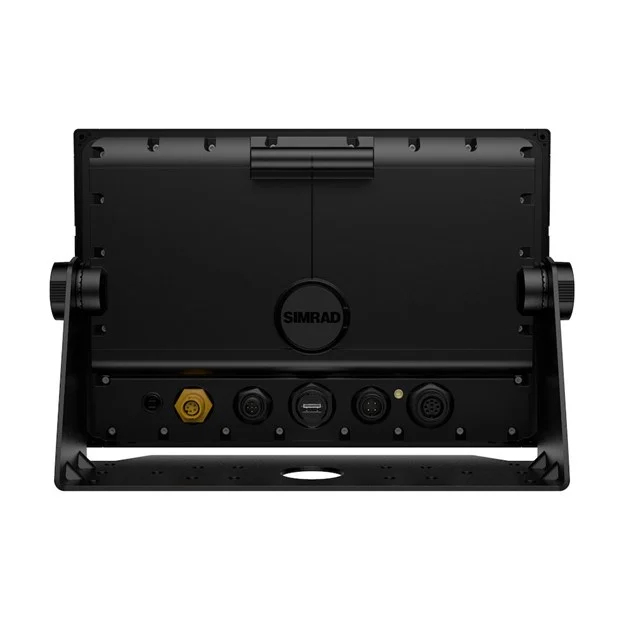

| Ethernet Ports | 1 port (5-pin connector) |
| Connectivity Wi Fi | IEEE 802.11b/g/n |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | No |
| SD Card Storage | 1 MicroSD slot, 1 x USB (A) |
| Video | IP Camera support |
| AIS | Receive AIS data over NMEA 2000 |
| Autopilot | NAC-1, NAC-2, NAC3, NAC-D compatible |
| Cartography included | Discover X chart card of North America |
| Digital Switching | Czone / DDS |
| GPS | Internal, 10Hz |
| Sonar Compatibility | One 9 pin Xsonic Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points. |
| Weather | Sirius XM via WM4 module (USA only) |
| Correction | 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS Receiver Channels | 32 Channels |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Update rate | 10Hz |

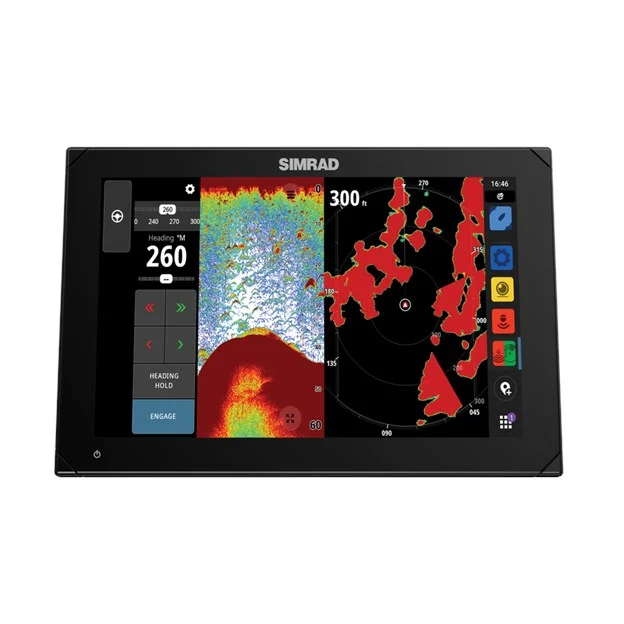

| Steering Modes | Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav |
| Charts Supported | C-MAP Tile (CMT) Discover X, Reveal X |
| Interface | Multi-touch screen |
