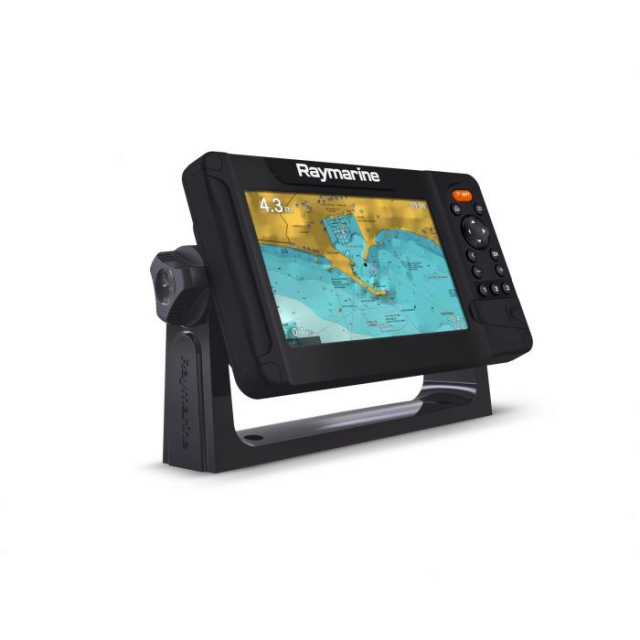

Buy Raymarine E70531, Element 7S No Transducer No Chart

info@primebuyb2b.com

1-855-797-1969
1-908-282-3433 (Intl.)

Options and Related Products

Configuration:: Configuration: 7" Display, No Chart

E70531 Includes Only:

7" Display
Element display
Surface mount gasket
Suncover
Trunnion knobs (x 2)
Documentation
Trunnion bracket
Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)

Features:

7 inch super bright display for all weather conditions
A powerful quad-core processor delivers fast chart redraw and responsive performance
Fast and accurate 10hz GPS/GNSS sensor
Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
Safely navigate busy waterways with an optional Quantum™ wireless radar
Built-in High CHIRP sonar for depth and bottom contour imaging
Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
From sailing to power cruising to fishing, the LightHouse Sport OS is easy to customize to your type of boating
An oversized waypoint key for quick and easy marking of your favorite locations
Three user-programmable quick keys provide access your favorite pages with one button push
Live menus let you customize charts while seeing the navigation display change in real time

Navigate with Confidence

The Element S series of chartplotters gives you the freedom to enjoy the open waters-Select your destination and let Element's fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion.

A quad-core processor offers responsive performance and Element's all-weather, sunlight viewable displays deliver nautical charts and navigation data in beautiful color.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Physical
Dimensions (Trunnion mount)	Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)
Dimensions (surface mount)	Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)
Weight (display only)	Element 7: 1.0 Kg (2.2lbs)
LCD
Size (diagonal):	Element 7: 7.0"
Resolution	Element 7: WVGA 800 x 480
Ratio	Element 7: 5:3
Viewing angle (T / B / L / R):	Element 7: 50° / 60° / 70° / 70°
Type	Element 7: TN (Twisted Nematic)
Color depth	24-bit
Maximum Illumination	1500 nits / 1500 cd/m2
Power
Operating voltage range	8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (Approximate at 12 V dc)	Element 7: 15 Watts
Nominal supply voltage	12 V dc
Fuse requirements	Inline fuse = 5 A, Thermal breaker = 3 A
LEN (NMEA 2000 Load Equivalency Number)	1 (Based on 9 V dc nominal voltage)
Data connections
SeaTalkng / NMEA 2000	1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi	1 x 802.11/b/g/n
Transducer	1 x 15-pin connector
Storage
External	1 x MicroSDXC card slot
Environmental
Operating temperature range	-25°C (-13°F) to +55°C (+131°F)
Storage temperature range	-30°C (-22°F) to +70°C (+158°F)
Humidity	up to 93% at 40°C (+104°F)
Waterproof rating	IPx6, IPx7
GPS Receiver
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Channels	Multiple - ability to simultaneously track up to 28 satellites
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, GLONASS, Beidou
SBAS compatibility	EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition	Automatic
Almanac Update	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Cold start	< 2 minutes
Conformance
Standards	EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Physical
Dimensions (Trunnion mount)	Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)
Dimensions (surface mount)	Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)
Weight (display only)	Element 7: 1.0 Kg (2.2lbs)
LCD
Size (diagonal):	Element 7: 7.0"
Resolution	Element 7: WVGA 800 x 480
Ratio	Element 7: 5:3
Viewing angle (T / B / L / R):	Element 7: 50° / 60° / 70° / 70°
Type	Element 7: TN (Twisted Nematic)
Color depth	24-bit
Maximum Illumination	1500 nits / 1500 cd/m2
Power
Operating voltage range	8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (Approximate at 12 V dc)	Element 7: 15 Watts
Nominal supply voltage	12 V dc
Fuse requirements	Inline fuse = 5 A, Thermal breaker = 3 A
LEN (NMEA 2000 Load Equivalency Number)	1 (Based on 9 V dc nominal voltage)
Data connections
SeaTalkng / NMEA 2000	1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi	1 x 802.11/b/g/n
Transducer	1 x 15-pin connector
Storage
External	1 x MicroSDXC card slot
Environmental
Operating temperature range	-25°C (-13°F) to +55°C (+131°F)
Storage temperature range	-30°C (-22°F) to +70°C (+158°F)
Humidity	up to 93% at 40°C (+104°F)
Waterproof rating	IPx6, IPx7
GPS Receiver
Position Accuracy	Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum	WGS-84 (alternatives can be selected on the MFD)
Channels	Multiple - ability to simultaneously track up to 28 satellites
Antenna	Internal - Ceramic chip mounted near top of unit
GNSS compatibility	GPS, GLONASS, Beidou
SBAS compatibility	EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition	Automatic
Almanac Update	Automatic
Receiver IC Sensitivity	165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency	1574 MHz to 1605 MHz
Cold start	< 2 minutes
Conformance
Standards	EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15
