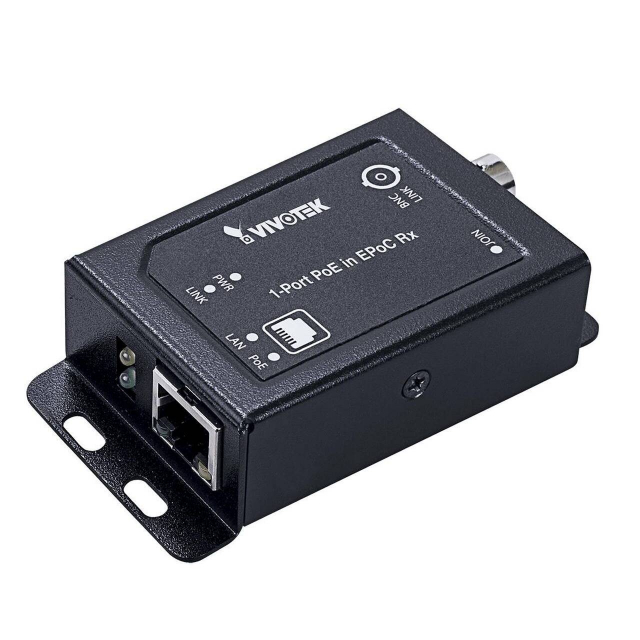

Vivotek, AP-FEX-0100-R, Indoor EPoC Extender RX Module

Notes:

• VIVOTEK EPoC Rx modules are only compatible with EPoC Tx modules.

Features:

• Extend Ethernet and Power up to 1,200m (3,937 ft) over RG6 Coaxial Cable
• Support Ring Topology up to 4 IEEE 802.3af Camera for Power Redundancy
• Support Daisy Chain Topology up to 4 IEEE 802.3af Camera
• Easy Installation for A Smooth Transition from Legacy to IP Camera
• Both Wall Mount and Rackmount Supported

The EPoC (Ethernet & Power over Coaxial) line is a long-range solution providing Fast Ethernet and Power over RG6 coaxial cables up to 1200m for IP cameras. This product line is the best solution for transforming CCTV to IP cameras without needing to change legacy RG59 cables, thereby saving on wiring costs. Additionally, EPoC transmits both power and data to IP cameras whereas fiber solutions only provide data.
