Features:

  • Supports RTSP, NDI HX3, NDI HX2
  • Delivers high video quality with ultra-low latency
  • Long-distance 4K IP-based AV transmission
  • USB Extension over IP
  • Instant source switching

ndi hx3 & ip decoding

NDI HX3 & IP Decoding

4K and HD NDI HX3 and IP video streams can be decoded in high quality to HDMI with minimal latency.

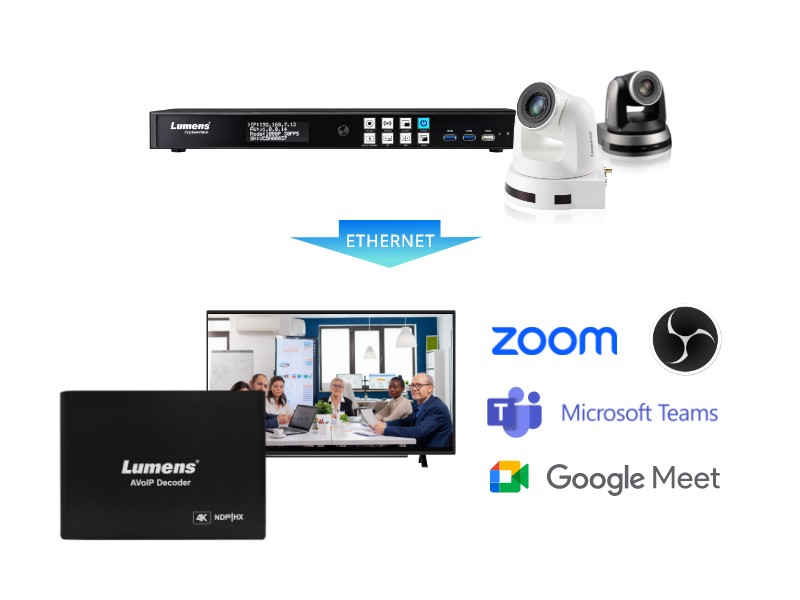

ip video to usb conversion

IP Video to USB Conversion

OIP-N60D decodes IP video streams from NDI HX and RTSP to UVC/UAC-compliant USB for use with video conferencing platforms. The device also supports NDI Virtual USB output.

usb web-cam extension

USB Web-cam Extension

OIP-N60D transmits web-cams over your IP network for quick and easy AV integration. The signal is decoded by the OIP-N40E for output to USB.

video wall deployment

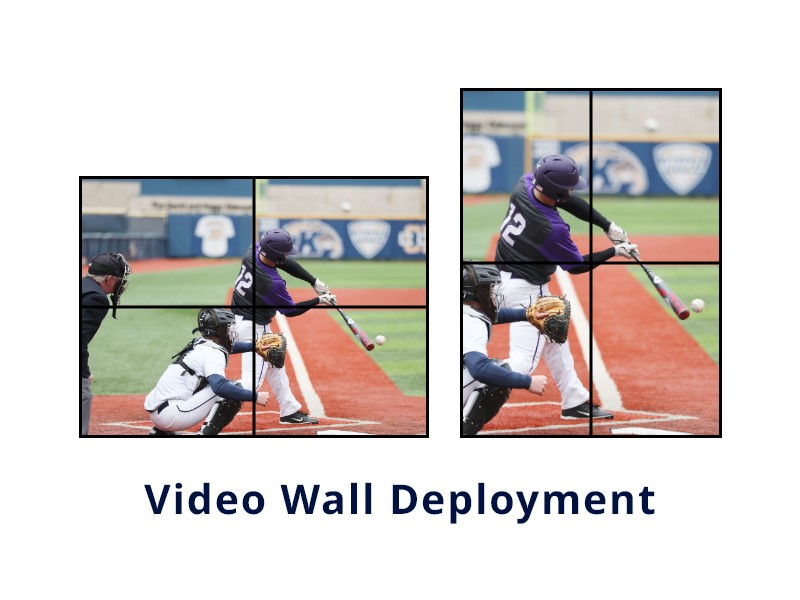

Video Wall Deployment

The OIP-N60D OIP Bridge is an ideal building block for video walls, supporting monitors mounted in landscape or portrait mode. Combine multiple OIP Bridges and screens to build the wall configuration you need.

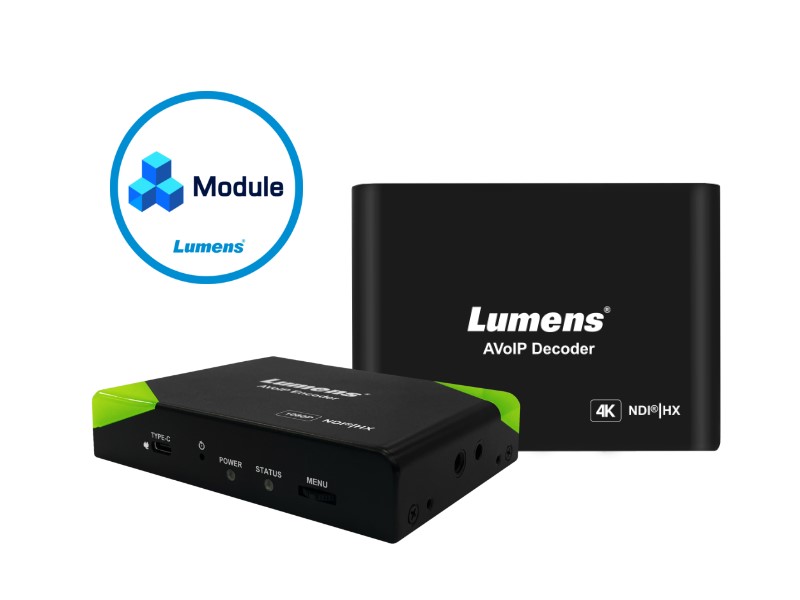

crestron control module

OIP-N Series Crestron Control Module

The module enables integrators to use the Crestron environmental control system to manage the Lumens products.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

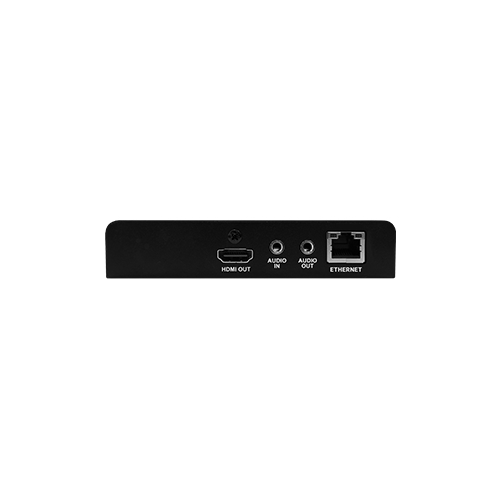

HDMI OutputHDMI 2.0 x1
USB DeviceType-C x1
USB HostType-A x1 (Support USB web-cam)
Audio InputLine In/MIC In, 3.5mm x1
Audio OutputLine Out, 3.5mm x1
EtdernetGbE LAN (RJ-45) x1
Menu ButtonYes
Reset PinYes
LED IndicatorPower lightStatus Connection light
Decoding capabilityUp to 2160p60
IP ProtocolNDI HX3 / NDI HX2 / RTSP
Video DecodingH.264 / HEVC(H.265)
Audio DecodingYes
PoE(IEEE802.3af)
ManagementOSD / Web
USB Web-cam ExtensionYes
IP Stream to USB web-camYes
UVCYes
UACYes
PowerPoE / USB
Power consumptionPoE : 11 WUSB : 10 W
Operating Temperature32°F ~ 104°F
Operating Humidity20~80%, non-condensing
Storage Temperature-4°F ~ 140°F
Weight0.77lbs (350g)
Dimensions (W×H×D)4.92" x 3.5" x 0.98" (125 x 89 x 25 mm)

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
HDMI OutputHDMI 2.0 x1
USB DeviceType-C x1
USB HostType-A x1 (Support USB web-cam)
Audio InputLine In/MIC In, 3.5mm x1
Audio OutputLine Out, 3.5mm x1
EtdernetGbE LAN (RJ-45) x1
Menu ButtonYes
Reset PinYes
LED IndicatorPower lightStatus Connection light
Decoding capabilityUp to 2160p60
IP ProtocolNDI HX3 / NDI HX2 / RTSP
Video DecodingH.264 / HEVC(H.265)
Audio DecodingYes
PoE(IEEE802.3af)
ManagementOSD / Web
USB Web-cam ExtensionYes
IP Stream to USB web-camYes
UVCYes
UACYes
PowerPoE / USB
Power consumptionPoE : 11 WUSB : 10 W
Operating Temperature32°F ~ 104°F
Operating Humidity20~80%, non-condensing
Storage Temperature-4°F ~ 140°F
Weight0.77lbs (350g)
Dimensions (W×H×D)4.92" x 3.5" x 0.98" (125 x 89 x 25 mm)
