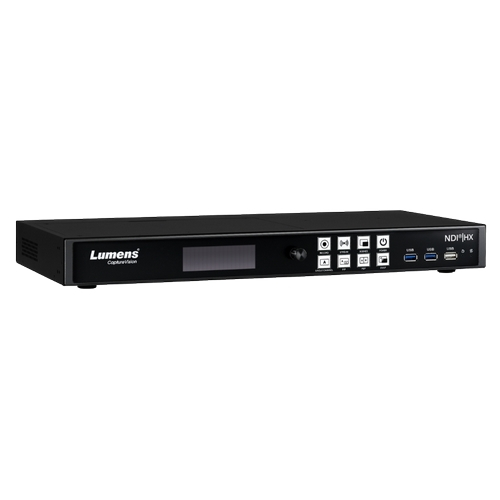

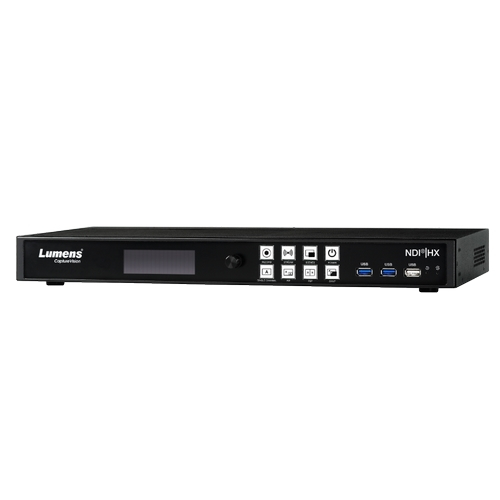

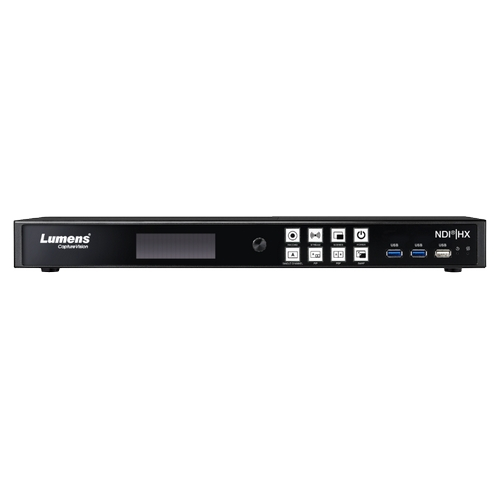

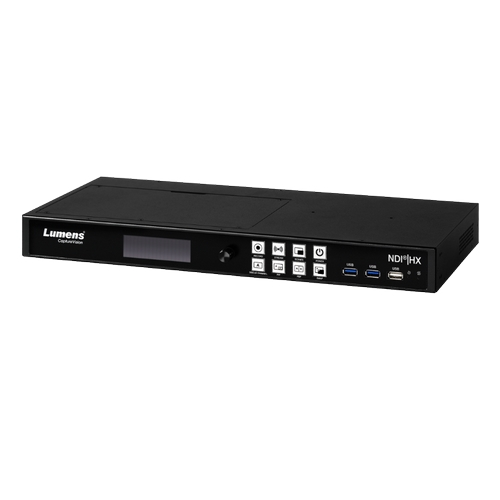

Lumens, LC100N, CaptureVision System 2-Channel Recorder and Streaming Media Processor with HD NDI HX support

Features:

  • 2-Channel Media Processing
  • Simultaneous Recording, Live Production and Streaming
  • NDI HX2, HDMI, SDI, RTSP and USB inputs
  • XLR Audio with phantom power
  • Built-in 2TB HDD storage
  • Supports for NAS and FTP storage

ndi hx support

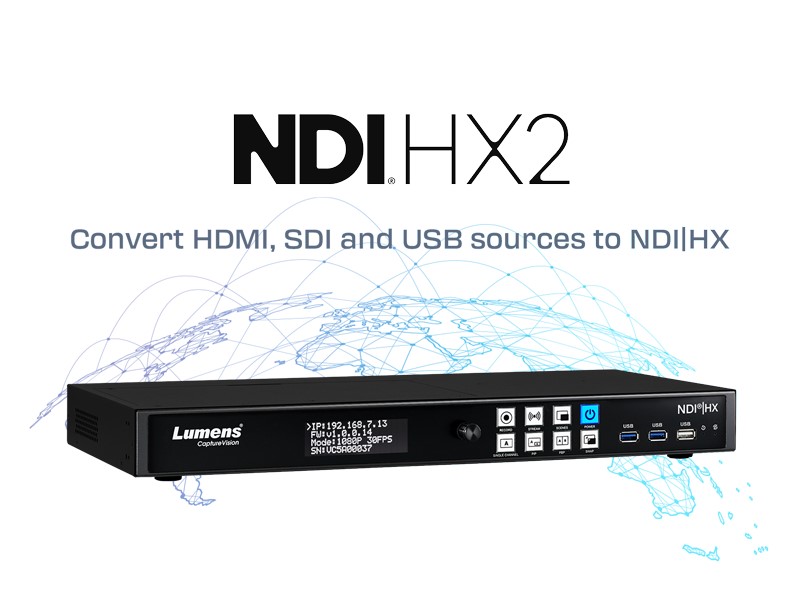

NDI HX Support

LC100N can receive multiple 1080p NDI HX streams, enabling plug-and-play network production. The device can also convert HDMI, SDI, and USB sources to NDI HX, allowing the unit to be used as an IP encoder.

gui director

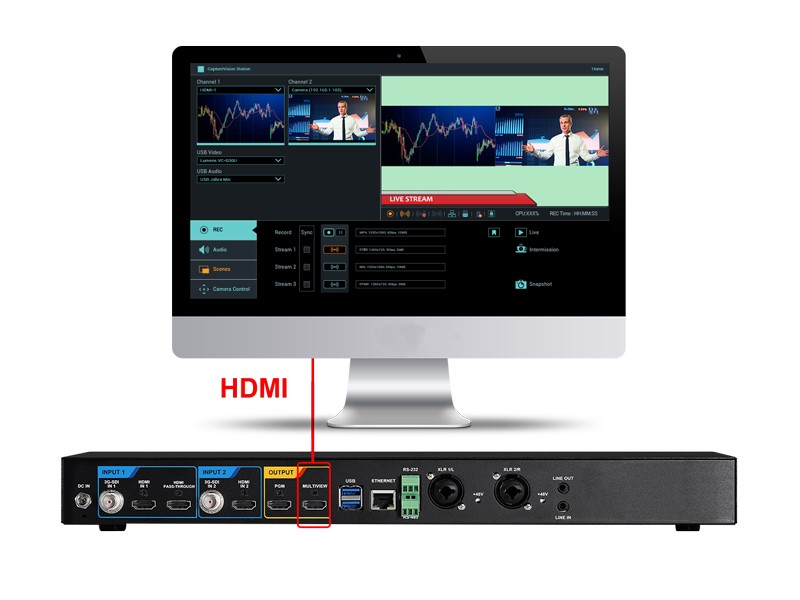

Onboard GUI Director

Live control is incorporated into the device. Connect an HDMI screen to the LC100N to access the intuitive GUI. Plugging in a mouse and keyboard turns the device into a live production switcher.

scenes switching

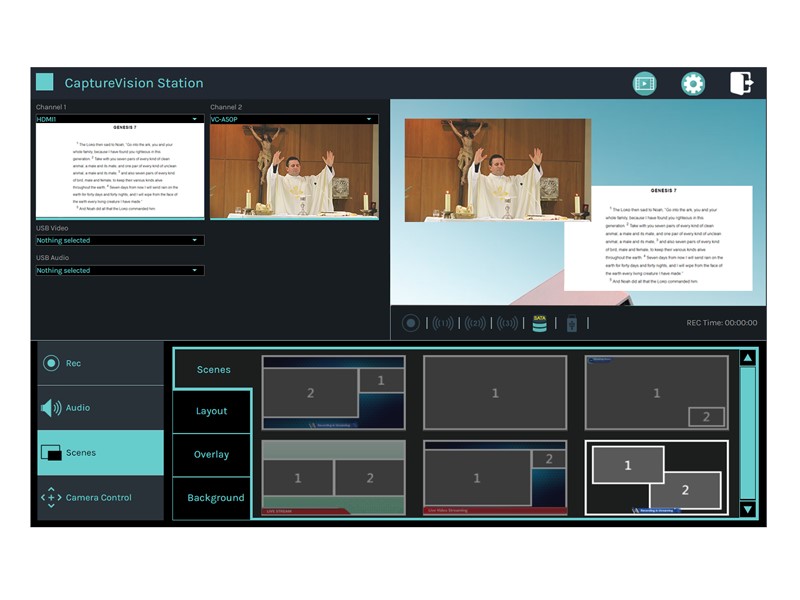

Live Pre-defined Scenes for Switching

Build layout scenes that help you communicate, such as split screen video, picture-in-picture, title/logo overlays, and background images. Activate and change layouts with the cli-ck of a mouse.

recording

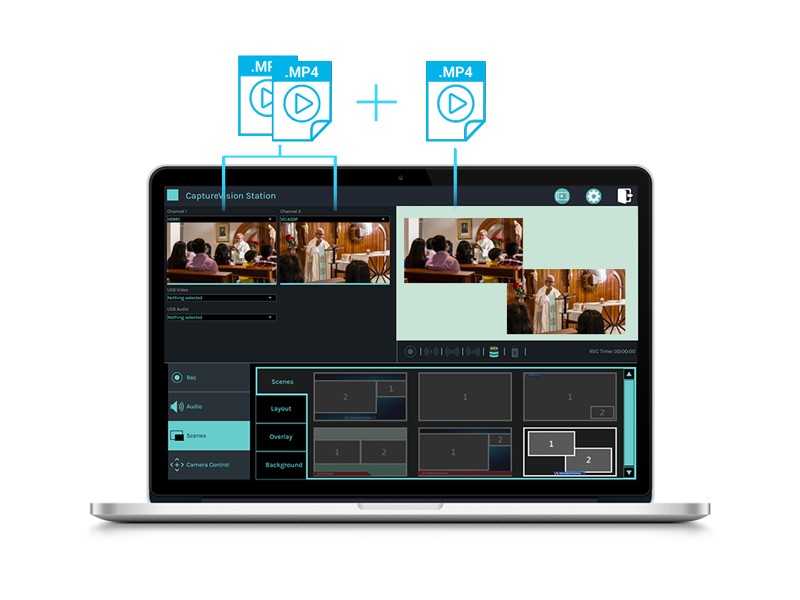

Program & ISO Recording

The LC100N records the mixed program-out video and captures two video inputs with independent audio. This simplifies media archiving and post-production.

deployment tool

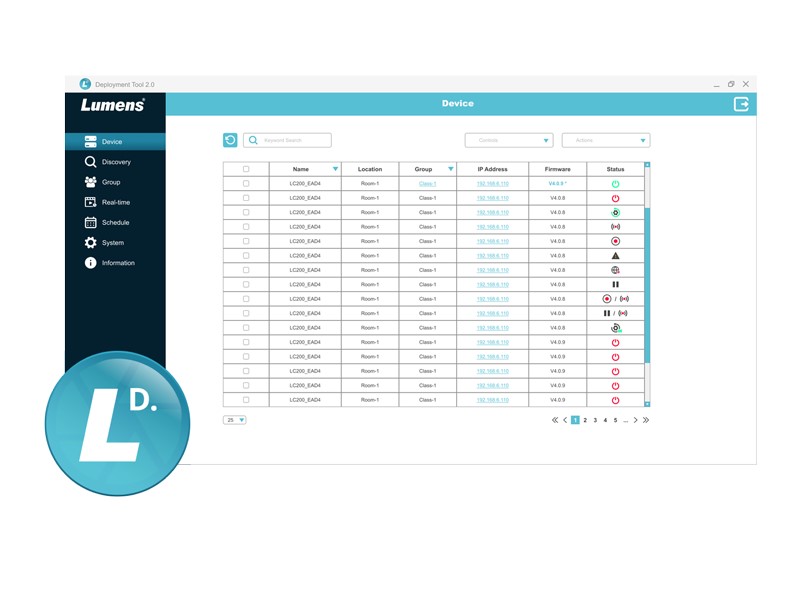

Deployment Tool for Remote Central Management

Lumens deployment software enables control, management, and administration of multiple LC100N units on the network. Administrators can remotely monitor device status, saving time and reducing costs.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories
Reviews
Video Input Number / Signal2* HDMI (HDCP Compliant) 2* 3G-SDI
ConnectionFemale HDMI Type-A / 3G-SDI
Resolution RangeHDMI Input 1: 720p~2160p 60fps, 1920x1200(RB) Others: 720p~1080p 60fps
IP Source / USB CameraLumens IP PTZ / Box Camera NDI HX2 Source (1080p 60/30fps) RTSP Source (H.264 1080p 60/30fps) USB Camera (MJPEG 1080p 30fps)
Video CompressionH.264 / AVC 4:2:0 8bit color Encoding Profile: High, Main, Baseline
Bitrate200 kbps to 10 Mbps
Video Output Number / Signal3* H.264 / AVC Digital Video over Ethernet 2* HDMI Digital Video 1* HDMI Pass-through (Up to 4K)
Scaled Resolution1080p
Frame Rate30 / 60 fps
Internal Storage2TB HDD
External Storage4* USB 3.0 Port
File TypeH.264 and AAC in an MP4 container, JPEG
Resolution360p / 720p / 1080p
Frame RateMax. 1080p 60/30 fps
Audio Input Number / Signal1* Line In (Stereo Unbalanced Audio, 3.5mm Phone Jack) 2* Combo (XLR / TRS, Balanced Audio, Line / Mic in, Support +48V Phantom Power) IP Audio Source (RTSP/AAC-Raw), NDI HX2, 16K/44.1K/48K) Support UAC
CompressionAAC-LC
Audio Output Number / Signal1* Stereo, Unbalanced 3.5mm Phone Jack, 2* Stereo, Digital De-embedded Audio from HDMI
USB1* USB 2.0 Type A, 4* USB 3.0 Type A, Support USB Storage, USB Camera, USB Mic, USB Mouse, Keyboard, HID Touch Display
Serial ControlRS-232 / RS-485 Port
Ethernet Host Port1* Female RJ-45, 10/100/1000 Base-T High / Full Duplex
Streaming ProtocolPull: RTSP, NDI HX2, Push: RTMP / RTMPS / MPEG-TS / SRT, TCP / UDP / HTTP, DHCP Client
Support IP SourcesLumens IP Camera, RTSP, NDI
Scenes SwitchYes, preset for layout, background and overlay
Layout SwitchYes (Single, PIP, and PBP)
Background SwitchYes
OverlayYes, PNG overlay or system time overlay
File BackupFTP / SFTP / NAS(CIFS/SMB, NFS) / WebDAV /, Copy to USB Flash Drive
Content Management SystemsPanopto / OpenCast / Kaltura
Power SupplyDC In, 12V / 3A
Power Consumption30W
Dimensions (W x H x D)17" x 1.95" x 8.5", (432 x 49.4 x 218mm)
Weight5.3 lbs (2.4 kg)

Volume discounts

We offer volume discounts for large orders.

Worldwide service

We ship all around the world. Our staff is experienced in export orders and worldwide shipping.

Member exclusive pricing

We also offer special prices for our regular customers.

Customer service from people who care

We have fast and friendly customer services. We care about your needs and will do our best to ensure your inquiries are taken care of.

Best products from the best manufacturers

We offer competitive prices on loads of products from leading manufacturers.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Video Input Number / Signal2* HDMI (HDCP Compliant) 2* 3G-SDI
ConnectionFemale HDMI Type-A / 3G-SDI
Resolution RangeHDMI Input 1: 720p~2160p 60fps, 1920x1200(RB) Others: 720p~1080p 60fps
IP Source / USB CameraLumens IP PTZ / Box Camera NDI HX2 Source (1080p 60/30fps) RTSP Source (H.264 1080p 60/30fps) USB Camera (MJPEG 1080p 30fps)
Video CompressionH.264 / AVC 4:2:0 8bit color Encoding Profile: High, Main, Baseline
Bitrate200 kbps to 10 Mbps
Video Output Number / Signal3* H.264 / AVC Digital Video over Ethernet 2* HDMI Digital Video 1* HDMI Pass-through (Up to 4K)
Scaled Resolution1080p
Frame Rate30 / 60 fps
Internal Storage2TB HDD
External Storage4* USB 3.0 Port
File TypeH.264 and AAC in an MP4 container, JPEG
Resolution360p / 720p / 1080p
Frame RateMax. 1080p 60/30 fps
Audio Input Number / Signal1* Line In (Stereo Unbalanced Audio, 3.5mm Phone Jack) 2* Combo (XLR / TRS, Balanced Audio, Line / Mic in, Support +48V Phantom Power) IP Audio Source (RTSP/AAC-Raw), NDI HX2, 16K/44.1K/48K) Support UAC
CompressionAAC-LC
Audio Output Number / Signal1* Stereo, Unbalanced 3.5mm Phone Jack, 2* Stereo, Digital De-embedded Audio from HDMI
USB1* USB 2.0 Type A, 4* USB 3.0 Type A, Support USB Storage, USB Camera, USB Mic, USB Mouse, Keyboard, HID Touch Display
Serial ControlRS-232 / RS-485 Port
Ethernet Host Port1* Female RJ-45, 10/100/1000 Base-T High / Full Duplex
Streaming ProtocolPull: RTSP, NDI HX2, Push: RTMP / RTMPS / MPEG-TS / SRT, TCP / UDP / HTTP, DHCP Client
Support IP SourcesLumens IP Camera, RTSP, NDI
Scenes SwitchYes, preset for layout, background and overlay
Layout SwitchYes (Single, PIP, and PBP)
Background SwitchYes
OverlayYes, PNG overlay or system time overlay
File BackupFTP / SFTP / NAS(CIFS/SMB, NFS) / WebDAV /, Copy to USB Flash Drive
Content Management SystemsPanopto / OpenCast / Kaltura
Power SupplyDC In, 12V / 3A
Power Consumption30W
Dimensions (W x H x D)17" x 1.95" x 8.5", (432 x 49.4 x 218mm)
Weight5.3 lbs (2.4 kg)
