DHI-KTP01(S) Includes Only:

• IP Outdoor Station
• Indoor Monitor
• PoE Switch
• Surface-mount Box

IP Outdoor Station:

• 2 MP Wide Angle Camera with Night Vision
• Built-in Microphone with Two-way Talk and Group Call
• Aluminum Panel can be Surface- or Flush-mounted
• IP65 Ingress Protection and IK07 Vandal Resistance
• Power via PoE

IP Indoor Monitor:

• 7-inch TFT Screen, 1024 x 600 Resolution
• Integrated 8 GB Micro SD Card
• Setup and Activate up to Six (6) Alarm Inputs
• Wall-mount Installation
• Power via PoE

4-port PoE Switch:

• Layer 2 Unmanaged PoE Ethernet Switch
• Supports the PoE (IEEE802.3af), PoE+ (IEEE802.3at), and Hi-PoE Standards

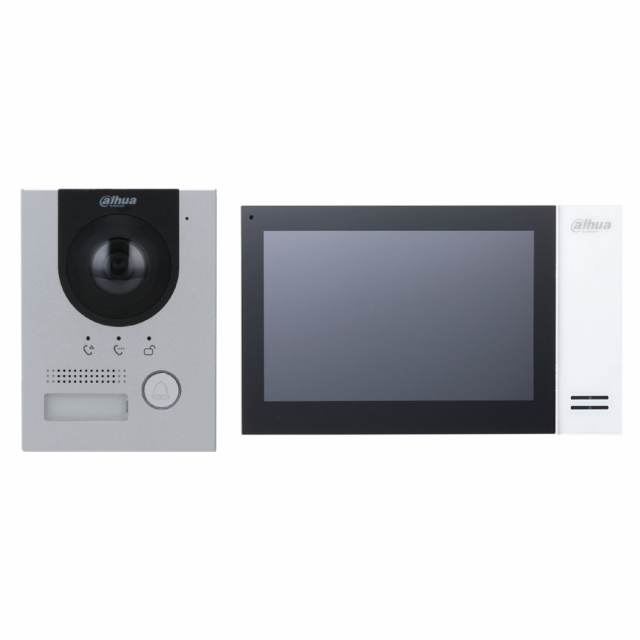

The DHI-KTP01(S) IP Video Intercom kit is a complete solution that includes an outdoor station with wide-angle camera, a color indoor monitor, and accessories to mount and power the components. The kit allows a tenant to view and talk with visitors and remotely unlock doors all from the indoor monitor. The IP outdoor station includes a 2 MP wide angle camera with two-way talk and is suitable for most outdoor applications. The kit is powered by PoE via the included 4-port PoE Ethernet switch, making installation easier, without the need to install additional dedicated power cables.

For more information, please see Data Sheet and Product Manual
