Input Voltage:
Input Voltage: 250 V
Current Input:
Current Input: 20 AAC

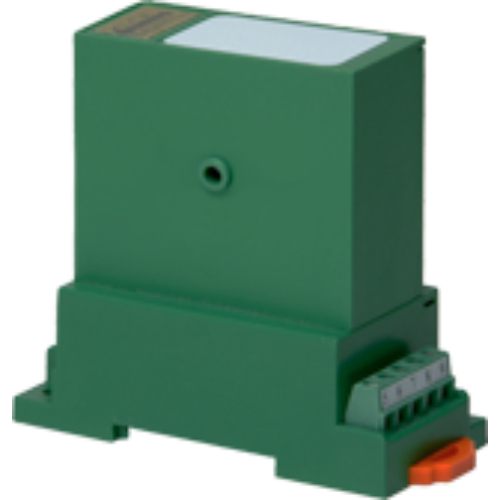

CR6211 Reactive AC Power Transducers are designed to provide a controlled output that is proportional to the average power. These devices are specifically targeted to provide an efficient solution to most power sensing needs. Units are designed for operation in systems with sinusoidal voltage and current waveforms.

Features:

  • DIN-Rail or Panel Mount
  • Ranges for any power sensing need
  • Active and Reactive power sensing
  • 0 - 5 VDC Outputs
  • The connection diagram printed on the case

Applications:

  • Energy Management
  • Motor Efficiency
  • Multi-point power sensing
  • Remote power sensing over long distances
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Basic Accuracy0.5%
Linearity10% to 100% FS
Thermal Drift500 PPM/°C
Operating Temperature0°C to +60°C
Installation CategoryCAT II
Vibration Tested ToIEC 60068-2-6,1995
Pollution Degree2
Response Time250 ms max. 0-90% FS
Supply Voltage24 VDC +/- 10%
MTBFGreater than 100 K hours
Frequency Range50 Hz - 400 Hz, sine wave
Insulation Voltage2500 VDC
Altitude2000 meter max. Output
Load4-20 mADC -0 to 500 Ω 0-5 VDC - 2K Ω or Greater
Cleaningwater-dampened cloth
Relative Humidity5% to 95%, Non-Condensing
Supply CurrentTypical 35mA; Max 45mA
