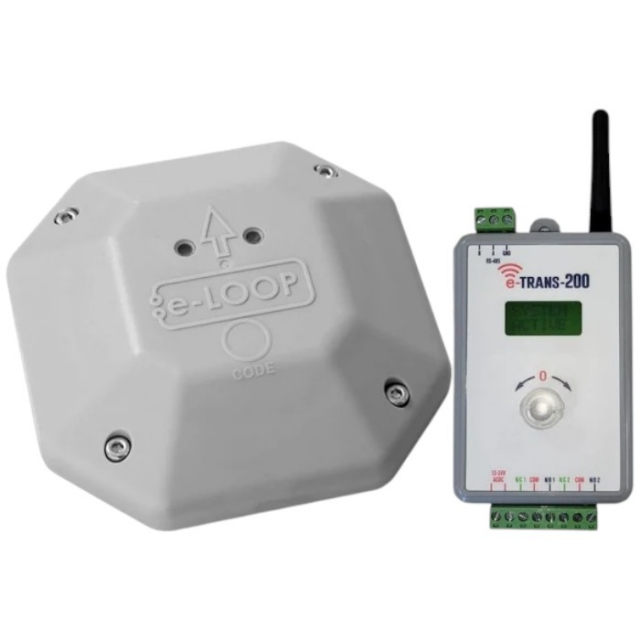

EL00M-KLT Includes Only:
- 1 x e-Loop Mini Exit mode.
- 1 x e-Trans 200.
- 2 x Concrete fixing bolts.
Features of e-Loop Mini Exit Mode:
- Quick and easy installation.
- Uses standard 1.5V AA Lithium batteries (included) providing up to 3-4 years of battery life.
- Small compact design 4.7" x 1.1".
- Static load capacity 2500kg.
- Range up to 50 yards.
- High-security 128-bit encryption.
- Read less
Features of e-Trans 200:
- Simple to use menu functions with LCD display.
- High sensitivity 433 MHz -126 dBm receiver with 20 dBm Transmission output.
- External SMA connector to allow for the connection of different antennas.
- Wide input voltage range from 10V to 36V ACDC.
- 2 relay outputs with the ability to set to Pulse, Hold or Latch mode. Selectable ultra-low standby power consumption of only 4.5 m/a making it ideal for solar applications.
- 200 code storage with remote ID selection making it ideal for unit applications.
- Ability to delete individual remote devices.
- Unique lock-out feature allowing you to lock out entry buttons, e-Loops and keypads using the lock and unlock function on the e-Remote.
- Ability to connect to the e-Loop to access menus and change settings.
- Test mode allows you to test relay outputs, signal strength, and interference.
The AES e-Loop Mini Wireless Vehicle Detection System is a compact, cutting-edge solution for small to medium commercial gates, parking lots, and residential entrances. Designed to provide reliable vehicle detection without the need for trenching or complex wiring, the E-LOOP Mini offers unmatched convenience, security, and efficiency in a smaller, more compact form. This wireless system operates using magnetometer sensors and offers both Exit Mode and Presence Mode to meet various detection needs. Despite its smaller size, the E-LOOP Mini delivers powerful performance, transmitting vehicle detection signals wirelessly to an e-Trans transceiver, ensuring seamless integration into your existing gate control system.
