AES Global, EL00IG-RAD-KT, e-Loop Inground Commercial Controller Presence Mode Kit with e-Trans 100

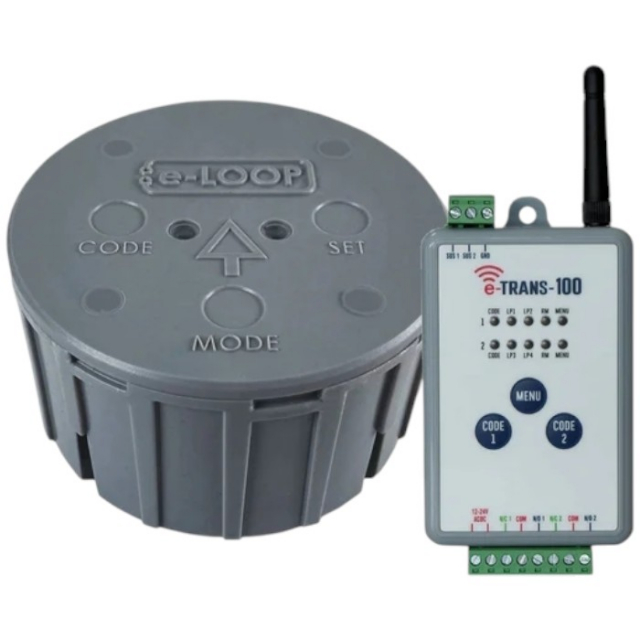

EL00IG-RAD-KT Includes Only:

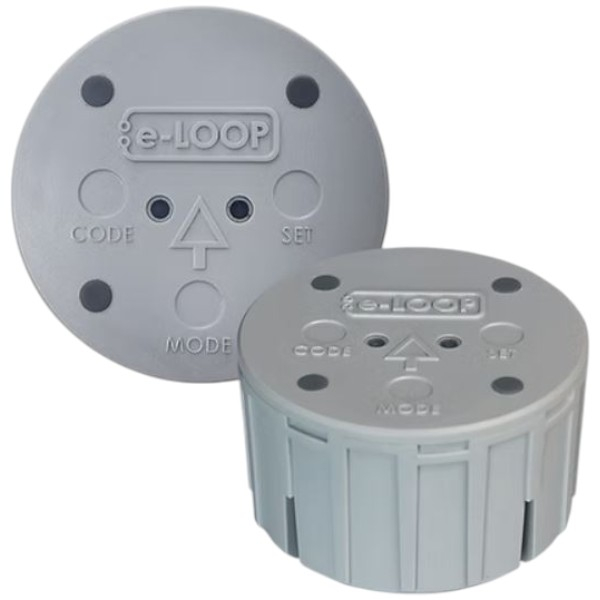

- 1 x e-Loop inground Presence mode.
- 1 x e-Trans 100.
- 1x Magnet.
Features of Presence Mode:
- Dual sensing technology.
- Recesses into driveway, Compact profile - 2.1" diameter x 3.4" high (IP68).
- Not affected by ground movement.
- High security 128 bit encryption.
- 14500 mA battery giving up to 6-10 years of battery life. (depending on mode).
- Top access for changing the battery.
- Up to 50 yards range.
Features of e-Trans 100:
- 2 channel transceiver.
- Long range with SMA connector for external antenna options.
- Stores 2 x e-Loops and 50 x remotes in each channel.
- 10-28VAC or 10-36VDC power input.
- Low current draw 12mA in standby, can be set to LDC mode.
- 4.5mA for solar applications.
- 433.39 MHz frequency.
- 250 Hz bandwidth.
- 128bit AES encryption for total security.
- 2 x 1A relay contacts.
- NC/NO/COM outputs.
- Can be set to pulse latch or hold mode.
- Suspension inputs for each relay.

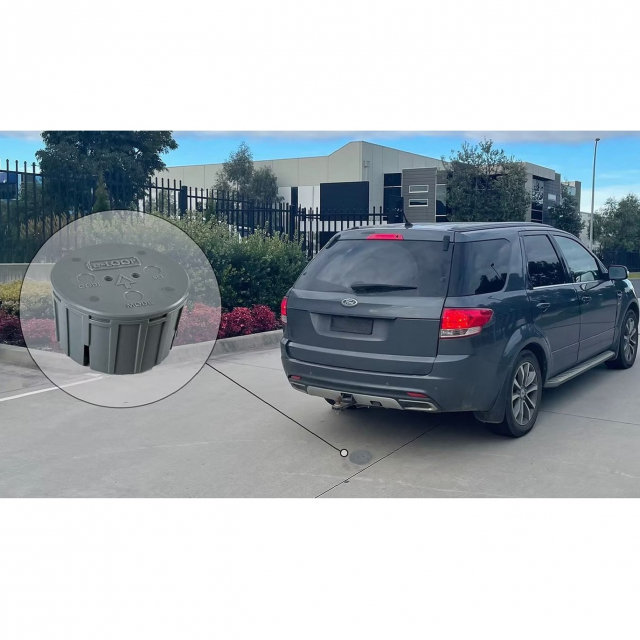

The E-Loop Inground Commercial Wireless Detection System is an advanced solution that combines cutting-edge technology with ease of installation for commercial gate control. This system is designed to replace traditional wired exit and safety loops, offering unmatched convenience and security in any commercial environment. Featuring magnetometer sensors and optional radar detection in presence mode, the E-Loop wirelessly communicates with gate systems, eliminating the need for complex wiring or trenching. It's the ideal solution for parking lots, gated entries, and high-traffic commercial areas where reliable vehicle detection is essential.
