AES Global, EL00IG-RAD-K, e-Loop Inground Commercial Radar Loop Presence Mode with e-Trans 50

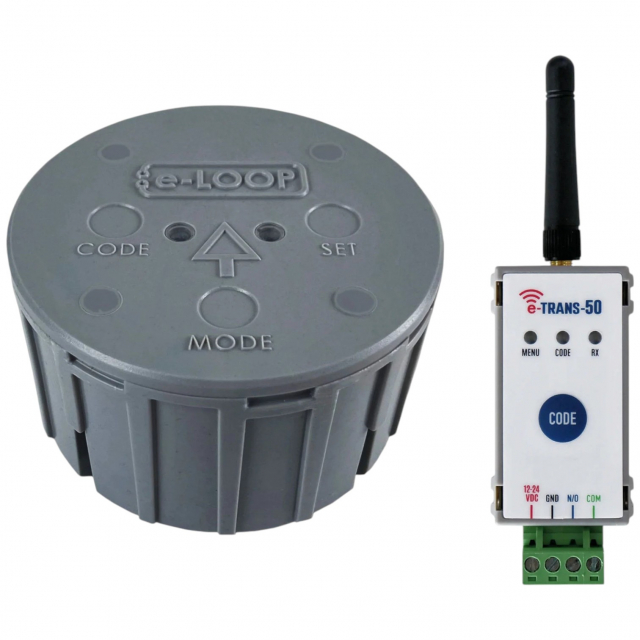

EL00IG-RAD-K Includes Only:
- 1 x e-Loop inground Presence mode.
- 1 x e-Trans 50.
- 1x Magnet.
Features of Presence Mode:
- Dual sensing technology.
- Recesses into driveway, Compact profile - 2.1" diameter x 3.4" high (IP68).
- Not affected by ground movement.
- High security 128 bit encryption.
- 14500 mA battery giving up to 6-10 years of battery life. (depending on mode).
- Top access for changing the battery.
- Up to 50 yards range.
Features of e-Trans 50:
- Compact design with exceptional range.
- Wide Voltage Range: 10-36V DC.
- Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a.
- Frequency: 433.39 MHz.
- Remote storage: 50 remotes, 4 x e-Loops, 4 x Keypads, 4 x Entry Buttons.
- Relay: 1-amp contact rating, COM and N/O connections x 1 relay.
- Multiple Modes: Pulse, Latch and Hold.
The E-Loop Inground Commercial Wireless Detection System is an advanced solution that combines cutting-edge technology with ease of installation for commercial gate control. This system is designed to replace traditional wired exit and safety loops, offering unmatched convenience and security in any commercial environment. Featuring magnetometer sensors and optional radar detection in presence mode, the E-Loop wirelessly communicates with gate systems, eliminating the need for complex wiring or trenching. It's the ideal solution for parking lots, gated entries, and high-traffic commercial areas where reliable vehicle detection is essential.
